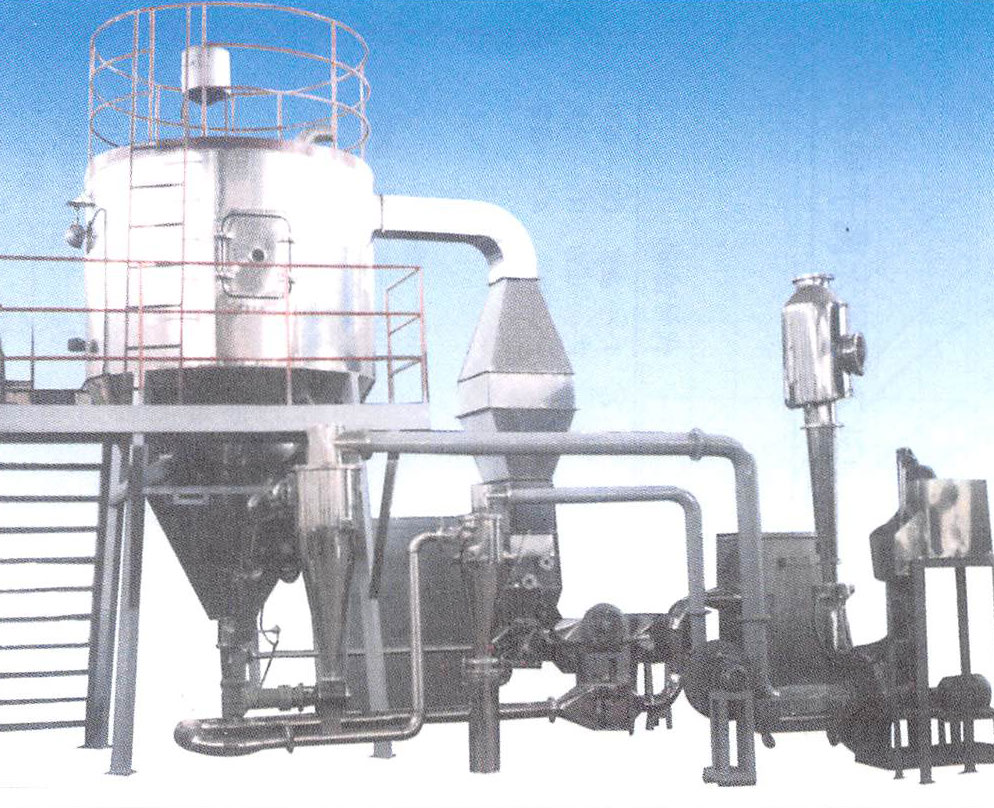

WPG series sterile spray Drying machine

Main feature:

● air purification system using high temperature and high efficiency, purification level up to 100.
● Drying tower and other components are used for automatic ozone or steam sterilization.
● All welds are polished. All right angles are rounded.
● Equipment appearance are made of stainless steel welding, all contact with the material are used mirror polishing, the design and processing are in line with GMP equipment requirements.
● All connections are made of quick-loading structure, easy to disassemble and clean, no health dead ends.

Applications:

The series spray drying machine is mainly used for the cleanliness requirements of very high western medicine powder, Chinese medicine powder and food and biological products and other industries spray dry.

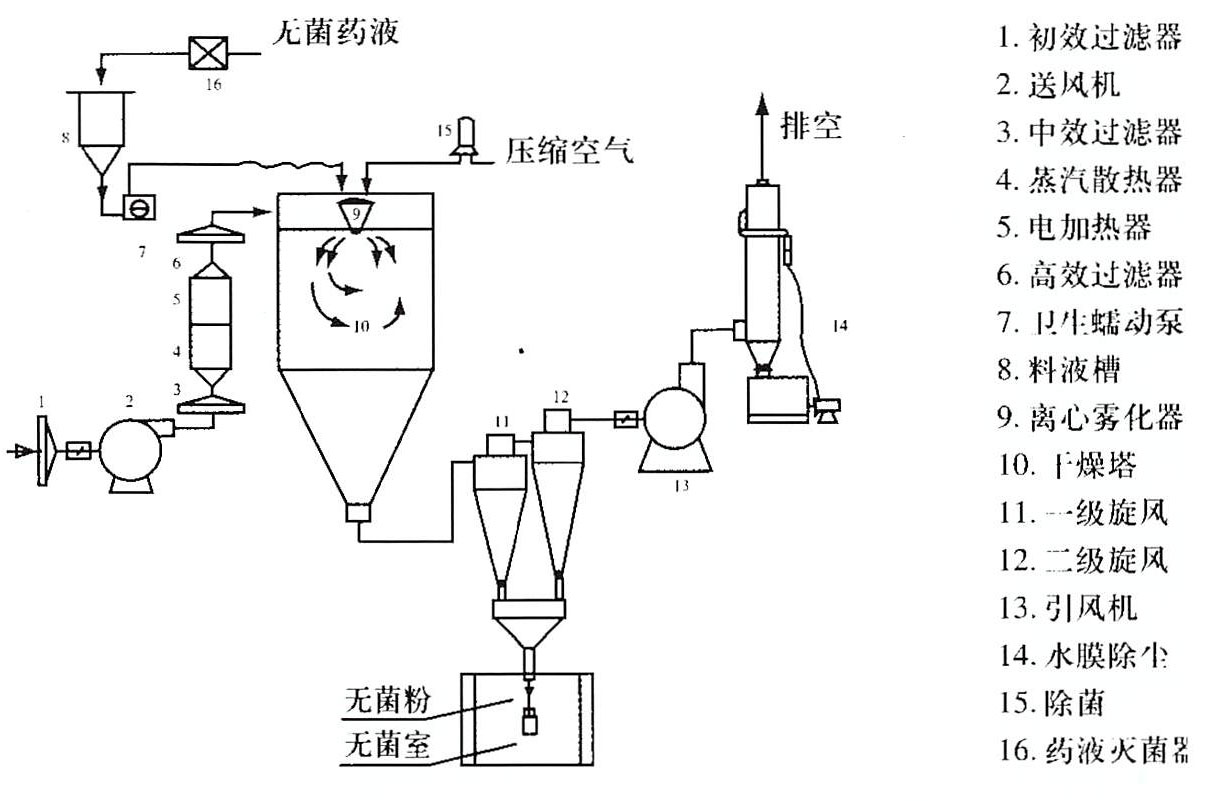

Technological process:

Parameter of selection:

Item / parameter / model WPG
10 25 50 100
Inlet temperature (° C) 130-220
Outlet temperature (℃) 65-100
Atomization method Centrifugal
Heat source All electricity Steam + electricity Steam + electricity Steam + electricity
Installed power 23 6 50 62 95
Sterilization method High temperature and high efficiency High temperature and high efficiency High temperature and high efficiency High temperature and high efficiency
Cleanliness 10 million / 100 level 10 million / 100 level 10 million / 100 level 10 million / 100 level
Diameter 1400 2100 2700 3200
Height 2300 4800 5500 6500
