Products

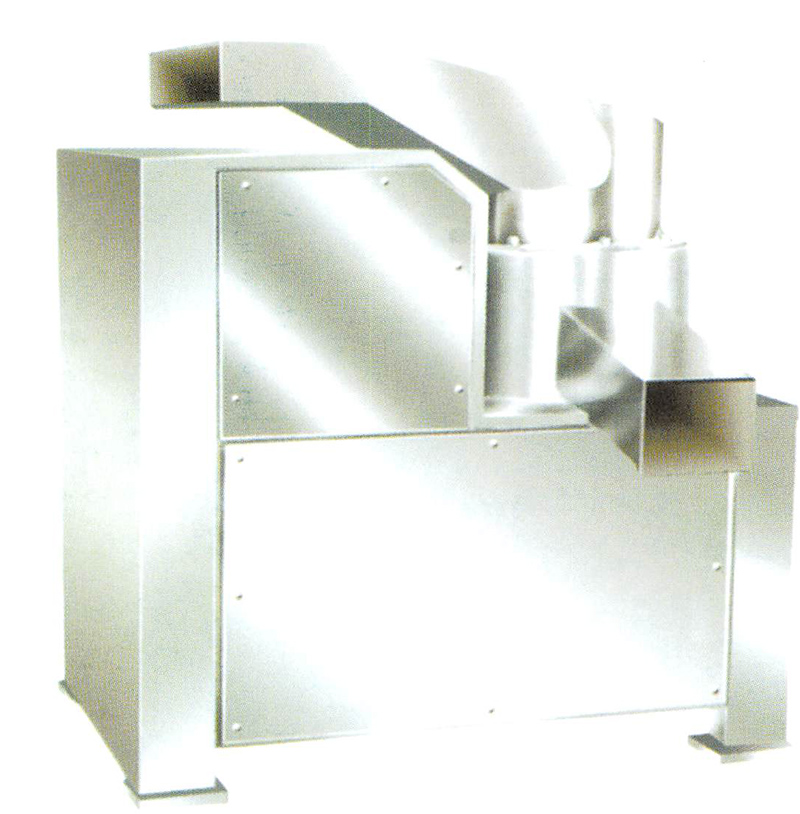

Model CSJ Series Roughness Grinder

Application
※ The machine is suitable for many industries such as pharmaceutical industry, chemical industry, metallurgy industry, foodstuff industry, architecture industry and so on to crush hard raw materials including plastics, steel wire, chinese herbal medicine, rubber and so on. It can also be as complete equipment of fine grinder and super fine grinder as the first procedure.

Feature
※ This machine adapts vertical crushing mechanism, It can not be limited by viscosity, hardness and softness of raw materials. It has good crushing effect to all kinds of raw materials.

Principle
※ Raw material is fed into crushing chamber through hopper and then impacted by the edges of knives and seat of knives and crushed by ratating and fixed knives through shearing. Being undertaken the centrifuge force, raw material will be discharged at its outlet automatically.

Technical parameters

type inlet material diameter(mm) output diameter(mm) output(kg/h) power(kw) speed of shaft(rpm) overall domension(mm)
CSJ-250 ≤100 0.5~20 50~300 4 940 860*650*1020
CSJ-250 ≤100 0.5~20 80~800 11 1000 1120*1060*1050

Notes:the output listed in the table will be different raw material, for reference only.
