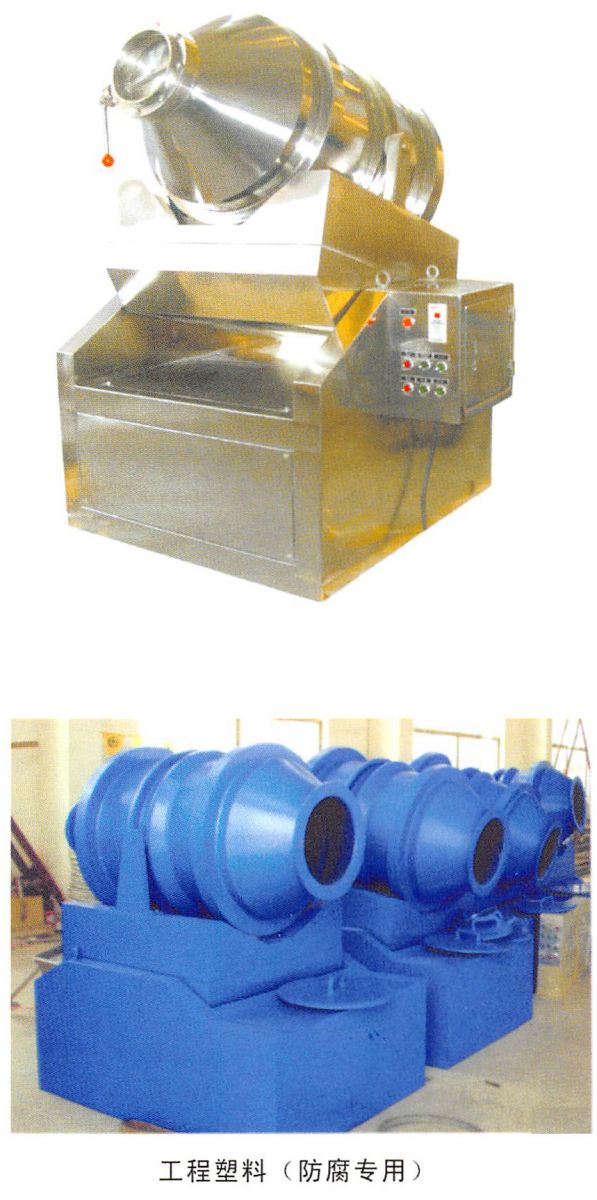

Model EYH Planar Motion Mixer

Principle
※ EYH Series Two Dimensional Mixer Principle Two dimensional mixer mainly consists of three big parts, namely, robating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of four wheels are driven by rotating power system to make the cylinder rotate, the swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.



Feature
※ The rotating cylinder of EYH Two Dimensional Mixer can make two motions at the same time. One is the rotational the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating. And will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions, materials canbe mixed fully in a short time, EYH Two Dimensional Mixer is suitable for mixing of all powder and granule materials.



Technical parameters

Specifications Model Volume(L) Loading factor Loading weight(kg) Dimensions(mm) power(kw)
A B C D M H Turn swing
EYH100 100 0.5 40 860 900 200 400 1000 1500 1.1 0.75
EYH300 300 0.5 75 1000 1100 200 580 1400 1650 1.1 0.75
EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1
EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1
EYH1000 1000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5
EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5
EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2
EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2
EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4
EYH5000 5000 0.5 1800 2700 2290 300 1440 3530 3000 7.5 5
EYH10000 10000 0.5 3000 3200 2700 360 1800 4240 4000 15 11
EYH12000 12000 0.5 4000 3400 2800 360 1910 4860 4200 15 11
EYH15000 15000 0.5 5000 3500 3000 360 2100 5000 4400 18.5 15
