Products

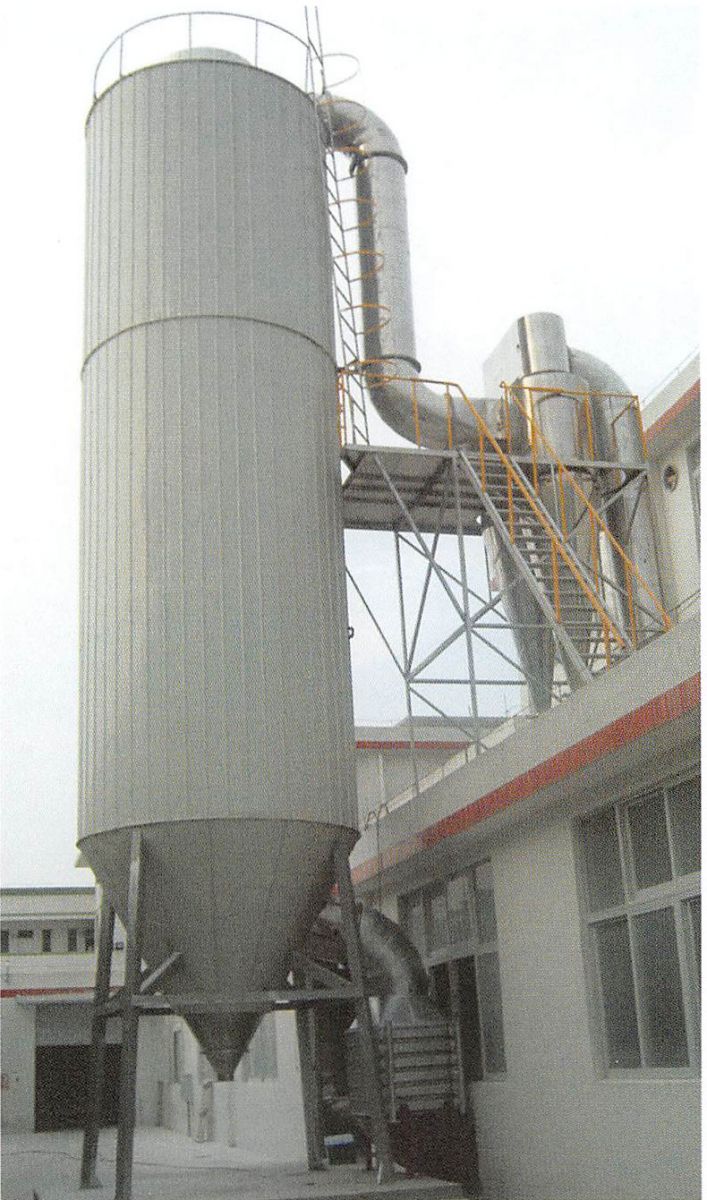

YPZ series Pressure spray cooling granulator

Working principle:

Clean air into the granulation tower, in the tower using centrifugal granulation dedicated nozzle, through the frequency control will be a variety of liquid material into the required small droplets, and cold air for rapid heat exchange, take away the liquid Of the heat, the material from the bottom of the tower and cyclone discharge.

Main feature:

● especially for sticky, paste, paste material effect is good, other equipment can not be replaced.
● Suitable for all kinds of condensing Spray granulation products, a wide range of temperature adaptation.
● nozzle frequency control, easy maintenance, simple operation, low operating costs.

Applications:

This series of spray granulator is mainly used for stearic acid, paraffin wax, rice wax, antioxidant, nicotinamide and other needs of melt granulation, cooling granulation resin, grease, vitamins industry spray cooling granulation.

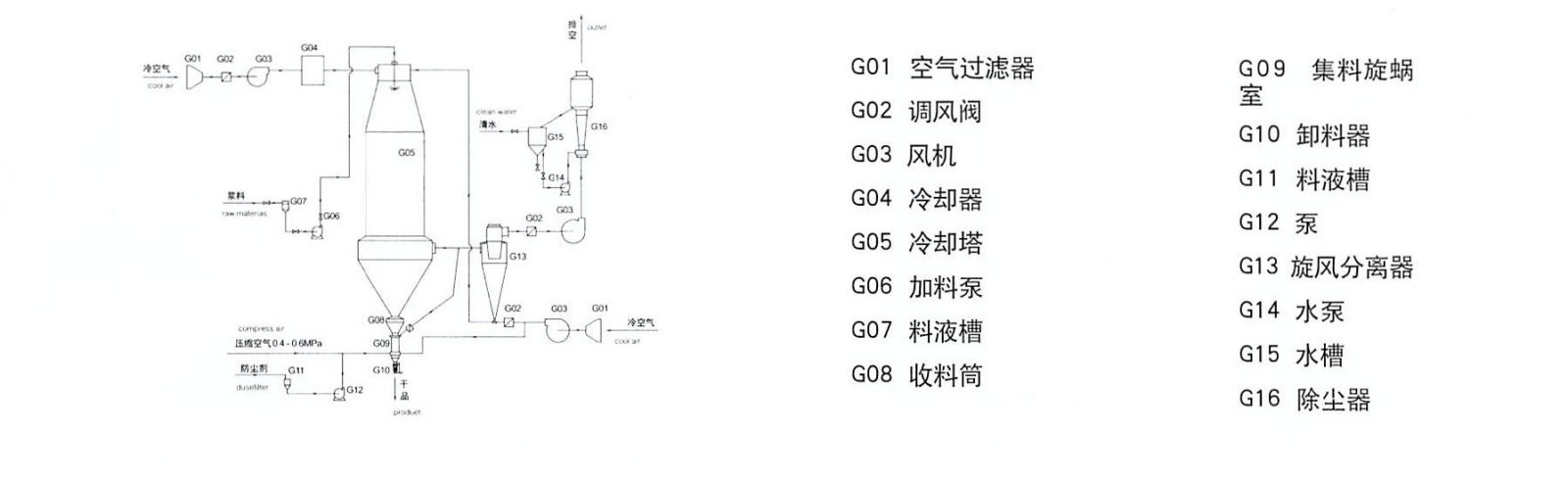

Technological process:

Technical Parameters:

Project / model LPZ-100 LPZ-200 LPZ-300 LPZ-500 LPZ-800 LPZ-1000 LPZ-2000 LPZ-3000
Production capacity (kg / h)
100 200 300 500 800 1000 2000 3000
Spray form
Low pressure pressure nozzles
Spray pressure (mpa)
0.3-1.6
Tower diameter (mm)
3000 3200 3600 3800 4200 4800 5200 6000
Height of tower body (mm)
11250 14500 15850 17000 18000 18500 20000 23000
Land length (mm)
According to the user site layout
Area width (mm)
According to the user site layout
Note: The production capacity and material properties, viscosity and the degree of air cooling.
